High-Purity Low-Silicon Boron Carbide (B4C) Granules: Silicon Control & Raw-Material Selection for Electronic-Grade Boron-Based Gas Synthesis   BoronHub Technical Note | CAS No. 12069-32-8 | Standard 2-5 mm Granules   In the semiconductor, photovoltaic, display-panel and fine-chemical-synthesis industries, electronic specialty gases impose extremely stringent purity requirements on feedstock materials. When Boron Carbide (B4C) is utilised as a solid boron source to synthesise boron-containing gases such as boron trifluoride (BF3), boron trichloride (BCl₃) and diborane (B₂H₆), impurity control — especially silicon (Si) content — directly governs reaction conversion efficiency, crude-gas purity, distillation load, as well as the application reliability of end-products. Referencing BoronHub’s high-purity boron-carbide product documentation, high-purity B4C is commonly identified under CAS No. 12069-32-8. Its specification framework is built around total boron, total carbon, free B2O3 and metallic / non-metallic impurities. For gas-synthesis feedstock, silicon grading must be precisely matched to the purity tier of downstream gases.   1. Why is silicon (Si) content tightly controlled for gas-synthesis feedstock? During high-emperature halogenation or reduction reactions, trace residual silicon impurities inside boron-carbide feedstock may transform into volatile silicon halides including SiCl4 and SiF4. Once these silicon-bearing species enter the crude-gas stream, they trigger multiple engineering challenges:   Higher distillation-separation difficulty: Certain silicon halides exhibit boiling points close to target boron-based gases. Separation of SiF₄ from BF₃ is particularly difficult under fluorine-system conditions, driving up energy consumption for low-temperature distillation and condensation purification.   Risk of end-product contamination: Residual silicon entering downstream CVD, diffusion or doping processes can alter thin-film stoichiometry, introduce particulate defects, and thereby degrade device electrical performance and production yield.     Equipment & catalyst hazards: Volatile silicon compounds may deposit on cold zones of pipelines, valves or reactors, causing blockages, abrasion or catalyst deactivation, which disrupt continuous stable operation. Accordingly, boron-carbide feedstock for gas synthesis cannot focus merely on total-boron and total-carbon metrics. The upper limit for silicon content should align with target gasproduct purity, reactor configuration and purification capacity, rather than chasing a simplistic “high-purity” label.   2. Technical Specifications of BoronHub Low-Silicon Boron-Carbide Granules BoronHub supplies high-purity low-silicon boron-carbide granules with standard particle size of 2-5 mm, suitable for fixed-bed, packed-bed and selected fluidised reaction systems. While maintaining high total-boron, high total-carbon and low free-B2O₃ performance, our products feature well-defined silicon-content grades. Model No. Total B + C Total B Total C Free B₂O₃ Silicon Si Specification UMBC-LS10 ≥98.50% ≥78.00% ≥18.00% ≤0.30% ≤0.10% UMBC-LS20 ≥98.50% ≥78.00% ≥18.00% ≤0.30% ≤0.20% UMBC-LS30 ≥98.50% ≥78.00% ≥18.00% ≤0.30% ≤0.30% UMBC-LS40 ≥98.50% ≥78.00% ≥18.00% ≤0.30% ≤0.40% UMBC-LS50 ≥98.00% ≥77.00% ≥18.00% ≤0.30% ≤0.50% Note: For industrial-grade gas synthesis or cost-sensitive projects, BoronHub can also deliver custom economy grades with Si < 0.90%. All minimum / maximum values serve as factory acceptance test criteria.   3. Beyond Silicon Grading: Synergistic Importance of Total B, Total C and Free B₂O₃ Silicon control is the core requirement for gas-synthesis feedstock, yet it is not the only parameter. BoronHub’s specification system simultaneously addresses the following indicators: Total B + C ≥98.50%: Guarantees effective boron-carbon content and minimises interference from inert impurities and oxygen on reaction efficiency. Total B ≥78.00%: Secures boron supply per unit feedstock, which improves gas-synthesis conversion rates. Total C ≥18.00%: Preserves B₄C stoichiometric balance for more predictable high-temperature reaction behaviour. Free B₂O₃ ≤0.30%: Mitigates ingress of oxygen and moisture, reducing side-reactions and oxygen-bearing impurities in downstream gases. Together with silicon-content grades, these parameters establish a complete quality-control framework for gas-synthesis raw materials. For gas products including BF3, BCl₃ and B₂H₆, customers can select the optimal low-silicon boron-carbide grade based on reaction pathways, distillation capacity and end-point purity requirements.   4. Engineering Advantages of 25 mm Granules Our standard 2-5 mm granules are not simply screened material; the particle morphology is optimised for gas-solid reaction engineering requirements: Minimise bed maldistribution: Uniform granules stabilise gas distribution and mitigate channeling and localised overheating.   Preserve excellent gas permeability: Deliver stable pressure-drop and reaction contact area within fixed-bed or packed-bed reactors. Reduce dust & entrainment: Compared with fine powders, granular material generates less dust during loading and operation, safeguarding gas purity and simplifying equipment maintenance.   Facilitate moisture-proof handling: When paired with hermetic sealing packaging, it lowers risks of B₂O₃ moisture-absorption and water contamination. Beyond the standard 2-5 mm grade, BoronHub can custom-engineer alternative particle-size ranges and particle-size distributions to match customer reactor geometry, sieve gradation and loading procedures.   5. Quality Assurance, Testing & Supply Capacity For electronic-specialty-gas synthesis clients, BoronHub delivers consistent batch-to-batch performance and scalable supply capacity: Each batch is tested against factory acceptance criteria; COA (Certificate of Analysis) can be provided alongside shipments. Traceelement testing such as ICP-MS is available upon request for target impurities including Fe, Al and Cr. Products are packed in moisture-proof hermetic packaging to minimise moisture exposure during transit and storage. Routine supply can align with steady monthly procurement schedules; packaging and commercial terms can be negotiated separately. Custom sieve-grading, sample testing and technical-document support are available.   6. Commercial Enquiries & Customisation Product pricing is directly correlated to silicon-content grades. Tighter silicon specifications ranging from Si < 0.90 %, < 0.50 %, < 0.40 %, < 0.30 %, < 0.20 % down to < 0.10 % demand stricter raw-material screening, process control and batch-testing protocols. Please contact the BoronHub technical-commercial team to obtain quotations for specific silicon grades, customisation & shipping proposals, COA templates or sieve-gradation datasheets.   BoronHub — High-Purity Low-Silicon BoronCarbide Granules. Controlled, stable and customisable feedstock solutions for electronic-grade boron-based gas synthesis.

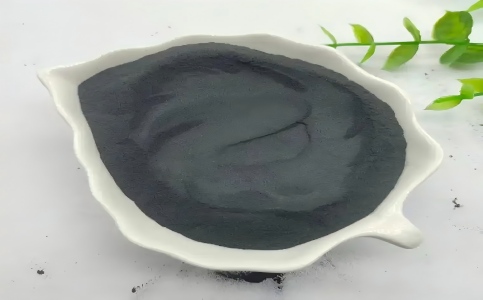

軽量装甲、研磨材、先進セラミックスの需要に牽引され、炭化ホウ素市場は2033年までに2億8560万米ドルに達する見込み。 2026年9月10日午前11時22分（中央ヨーロッパ時間）｜化学・材料ニュース　情報源：パーシステンス・マーケット・リサーチ 炭化ホウ素市場の概要研磨材、防衛、先端セラミックス、原子力エネルギー分野における高性能材料への需要の高まりを背景に、世界の炭化ホウ素市場は着実に拡大している。Persistence Market Researchによると、同市場は2026年には1億8140万米ドル、2033年には2億8560万米ドルに達すると予測されており、2026年から2033年までの年平均成長率（CAGR）は6.7%となる。2020年の市場規模は1億3230万米ドルであり、これは炭化ホウ素の優れた硬度、耐久性、機能性により、需要が持続的に増加していることを示している。産業用途および戦略用途の両方における先端材料への需要の高まりが、市場拡大をさらに促進している。研磨用炭化ホウ素が市場を席巻しており、2026年には市場シェアの約47%を占めると予想されている。粉末は主要な製品形態であり、市場全体の約58%を占めている。アジア太平洋地域は世界市場をリードしており、製造能力の拡大と主要エンドユーザー産業からの堅調な需要に支えられ、2026年には市場シェアの51%を占めると予測されている。 レポートの主なハイライト・世界の炭化ホウ素市場規模：2026年時点で1億8140万米ドル、2033年までに2億8560万米ドルに達すると予測。CAGR 6.7%（2026年～2033年）。・2020年の市場評価額は1億3230万米ドルで、炭化ホウ素材料に対する需要が着実に増加していることを示している。・アジア太平洋地域は最大の地域市場であり、2026年には市場シェアの51％を占めると予測されている。・研磨材グレードが依然として主要なグレードであり、2026年には収益シェアの約47％を占めると予想されています。・粉末は主要な物理的形態であり、2026年には収益の約58％を占める見込みです。・2026年から2033年の間に、1億420万米ドル相当の新たな市場機会が生まれると予想される。 高度な用途が炭化ホウ素の需要を押し上げる高性能材料への需要の高まりは、幅広い特殊用途において炭化ホウ素の新たな可能性を切り開いています。研磨用途は特に重要であり、研磨用炭化ホウ素が市場でトップの地位を占めていることからもそれが伺えます。要求の厳しい産業用途における確かな実績が、市場の継続的な成長を支えています。 先進セラミックスの応用分野は、新たな高成長分野として台頭している。2025年3月、ESKセラミックス（3Mの子会社）は、新しい超微粒子セラミックスを発表した。 炭化ホウ素 粉末（D50）
